FEATURES

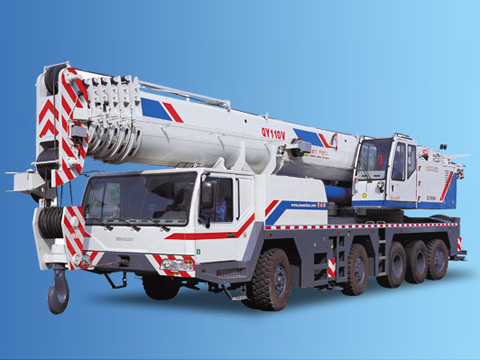

• A truck crane featuring full circle swinging,telescopic luffing jib and electro-hydraulic proportional control;
• All-frame five-axle dedicated truck chassis, featuring broad vision, luxurious and comfortable decorations, three-axle drive and three-axle steering;
• It adopts the latest load feedback electro-hydraulic proportional directional valve and multigang variable pump plus an open-and-close variable system, so that all actuators could give full play to their working ability;
• Its double rocker manipulation can achieve the combined movement of the main and auxiliary lifting, derricking, swing and telescopicing mechanisms, which has greatly improved the work efficiency of the crane;
• Easy and flexible operation, stable and reliable work, as well as stepless speed regulation;
• Such safety devices as overflow valve, balance valve, hydraulic lock and brake valve are equipped to prevent oilway overload and avoid accidents due to pipe fracture;
• Such safety devices as torque limiter and complete lighting system are equipped to ensure safe and reliable operation, and facilitate operation at night;
PARAMETERS
|
Type
|
Ser. No.
|
Item
|
Unit
|
Value
|
|
Working performance
|
1
|
Max. rated lifting weight × working radius
|
kg.m
|
110000×3.0
|
|
2
|
Max. lifting torque of basic boom
|
kN.m
|
4400
|
|
3
|
Max. lifting torque of longest main boom
|
kN.m
|
1880
|
|
4
|
Max. lifting height of longest main boom
|
m
|
58.5
|
|
5
|
Max. lifting height of jib
|
m
|
77/(85)
|
|
Dimensions
|
6
|
Outline dimensions (L×W×H)
|
mm
|
14690×3000×3890
|
|
7
|
Distance between outriggers (longitudinal × transversal)
|
mm
|
7670×7800
|
|
8
|
Main boom length (completely retracted – completely extended)
|
m
|
12.8~57.5
|
|
9
|
Jib length
|
m
|
11､18.6､(26.6)
|
|
10
|
Main boom angle of elevation
|
°
|
-1.5～82
|
|
11
|
Swing range
|
|
360°continuously
|
|
Working speed
|
12
|
Max.speed of single rope on the drum of main winch
|
m/min
|
115
|
|
13
|
Boom extension time
|
s
|
600
|
|
14
|
Boom derricking up time
|
s
|
80
|
|
15
|
Swing speed
|
r/min
|
0～1.5
|
|
Mass
|
16
|
Complete vehicle kerb mass
|
kg
|
54705
|
|
17
|
Front axle load
|
kg
|
19900
|
|
18
|
Rear axle load
|
kg
|
35000
|
|
Traveling
|
19
|
Max. traveling speed
|
km/h
|
78
|
|
20
|
Max. gradeability
|
%
|
40
|
|
21
|
Min. turn radius
|
m
|
11.5
|
|
22
|
Min. ground clearance
|
mm
|
280
|
